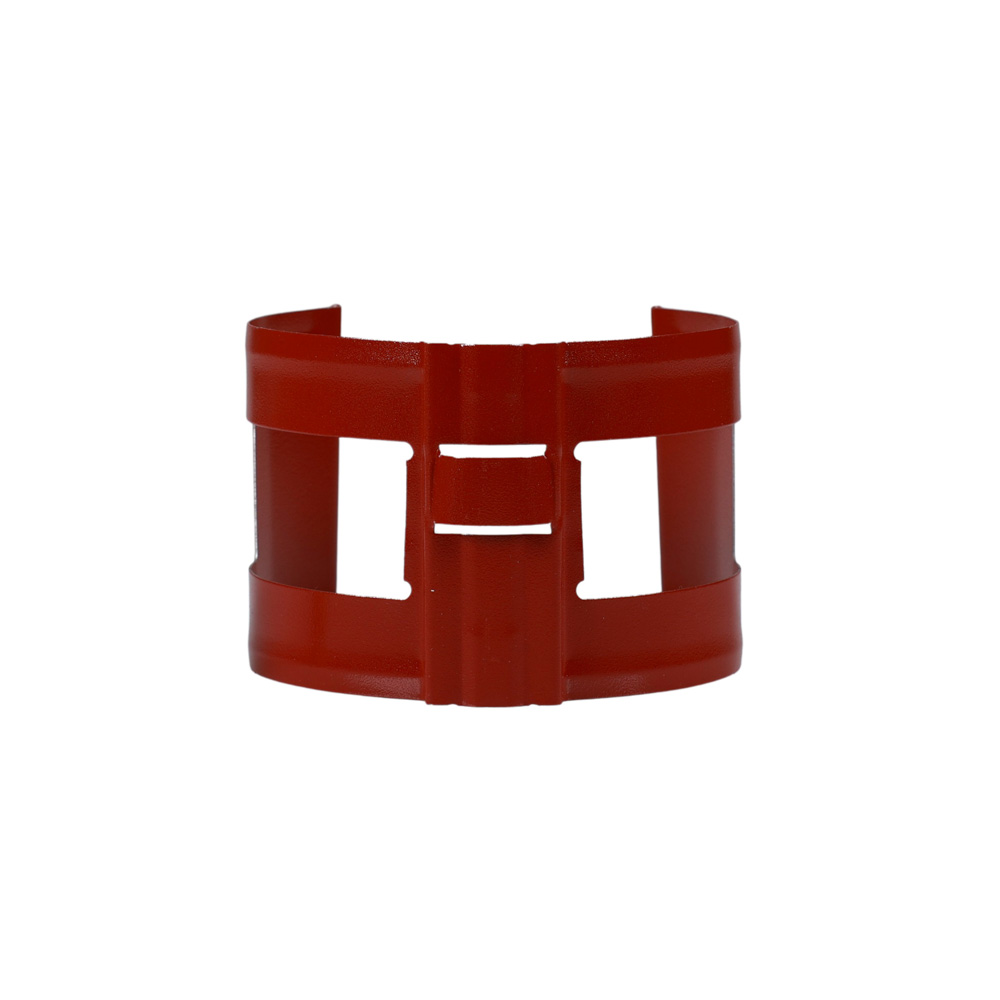

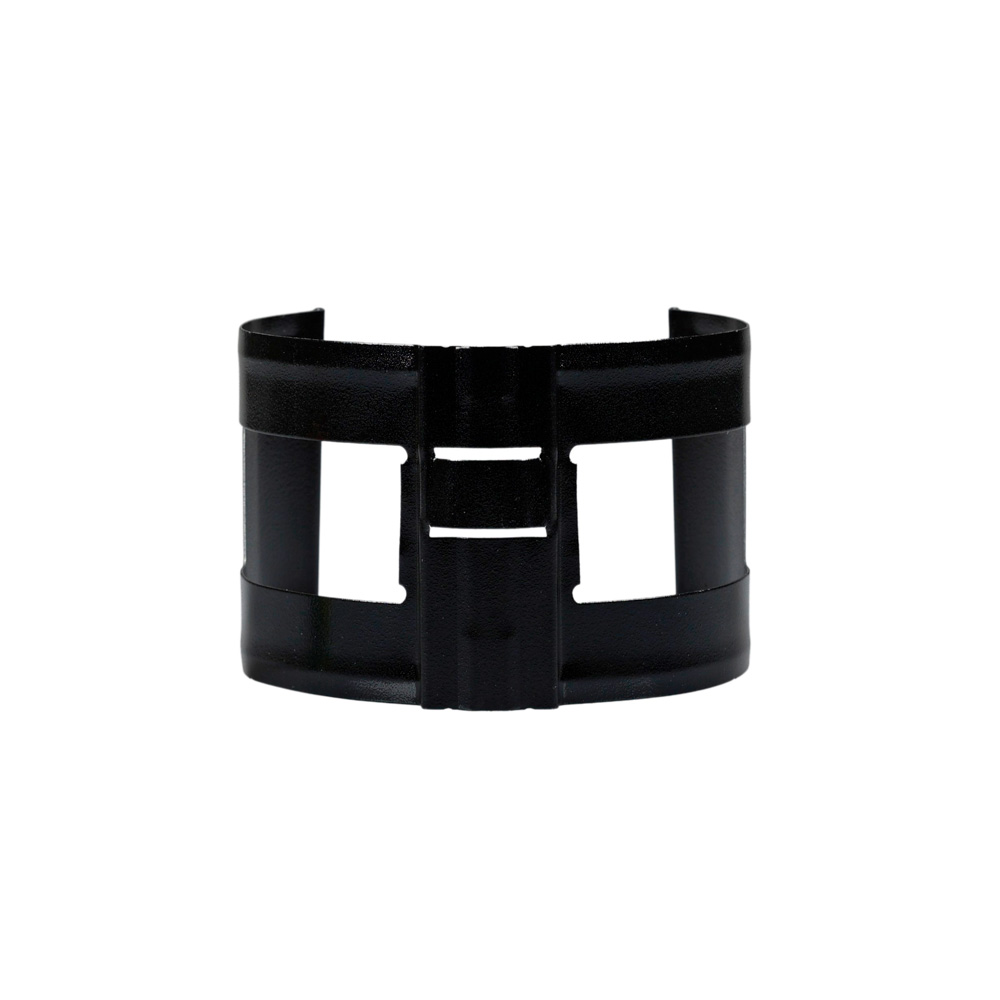

Pipe wrap
The pipe wrap is used to keep the downpipe in place by the wall.
You can choose between two different types, wood or stone. The pipe wrap wood have two screw holes and is used to fasten on a wooden or sheet metal wall. No screws are included as different types of walls require different types of screws. The pipe wrap stone has a holder for nail for stone wall or screw for stone wall.
You can order the pipe wrap stone with or without nail or screw. The feather for the pipe wrap is always included regardless of model.
You either order the pipe wrap stone by itself (product no. ends with 0) and the nail by itself. You will then get the nails packed separately in a box.
Or you can order the pipe wrap stone with the nail in correct length (product no. ends with 1-6). You will then get the nails packed in the same box as the pipe wraps.
Colors
The product is available in all colours.
Please note that the screw and nail for stone wall are galvanized and not pre-painted.
| Document | Type | |
|---|---|---|
| Installation guide | Installation guide | Download |
| Product catalogue | Product brochures | Download |
Assembly

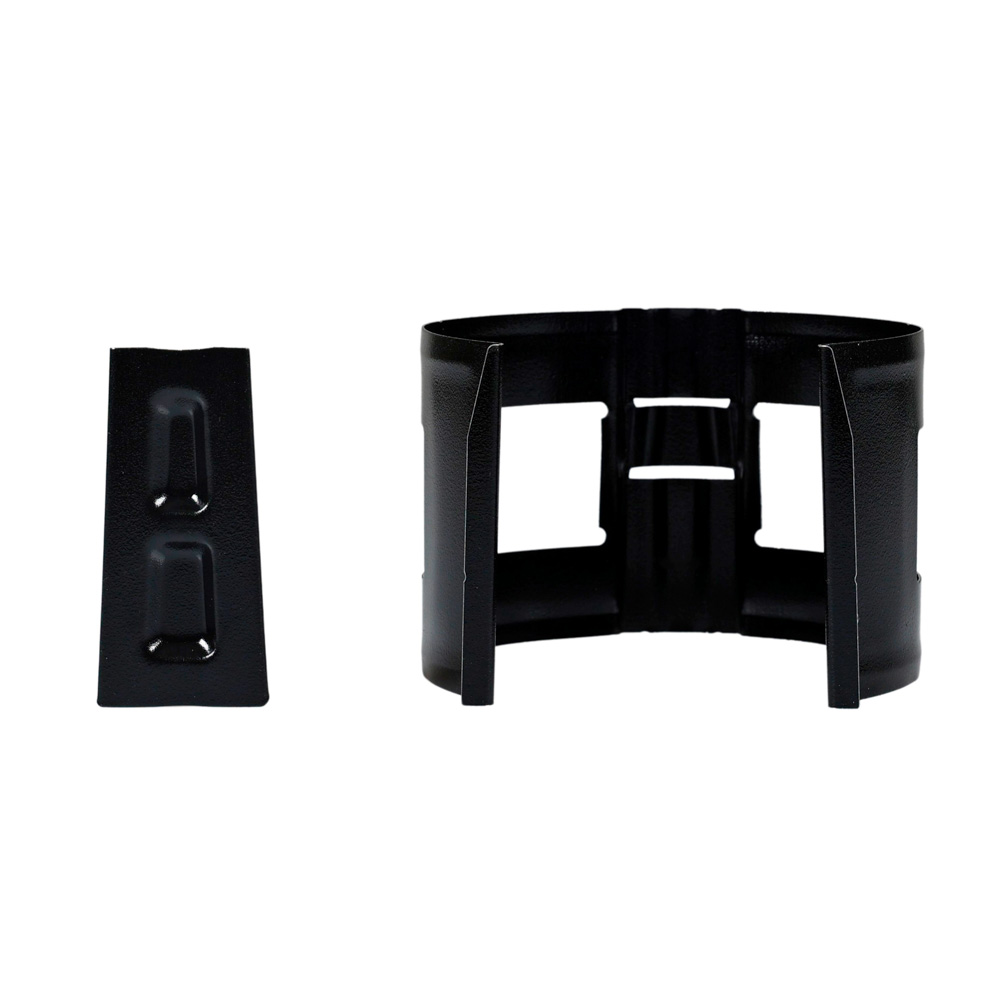

The pipe wrap wood is mounted on the wall with appropiate screw. The pipe wrap stone is mounted by using nail for stone wall which you hammer into the wall after you have predrilled a hole for it. Mount the first wrap just below the pipe bend the downpipe is connected to. The pipe wraps are mounted with maximum 2 meters apart, vertically under each other. When the wraps are mounted to the wall the downpipe can be secured. Press the pipe wrap around the pipe and secure it with the feather. Use a rubber hammer or a piece of wood to get the feather in place.
You can read more about this in the installation guide which is available for download in the tab documents.
The column Product code show our article number where 'x' is replaced with a number for colors.
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 100 | x420x0 |
| 90 | 100 | x020x0 |
| 100 | 50 | x220x0 |
| 110 | 50 | x320x0 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x0 |
| 90 | 50 | x021x0 |
| 100 | 50 | x221x0 |
| 110 | 50 | x321x0 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x1 |
| 90 | 50 | x021x1 |
| 100 | 50 | x221x1 |
| 110 | 50 | x321x1 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x2 |
| 90 | 50 | x021x2 |
| 100 | 50 | x221x2 |
| 110 | 50 | x321x2 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x3 |
| 90 | 50 | x021x3 |
| 100 | 50 | x221x3 |
| 110 | 50 | x321x3 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x4 |
| 90 | 50 | x021x4 |
| 100 | 50 | x221x4 |
| 110 | 50 | x321x4 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x5 |
| 90 | 50 | x021x5 |
| 100 | 50 | x221x5 |
| 110 | 50 | x321x5 |
| Dimension (mm) | Pcs/box | Product code |
|---|---|---|
| 75 | 50 | x421x6 |
| 90 | 50 | x021x6 |
| 100 | 50 | x221x6 |
| 110 | 50 | x321x6 |
